INCH-POUND
MIL-DTL-16377/42C(SH)
30 June 2014
SUPERSEDING
MIL-DTL-16377/42B(SH)
18 December 2008
DETAIL SPECIFICATION SHEET
FIXTURES, LIGHTING; FILTERS, PLASTIC, TUBULAR SHAPED FOR FLUORESCENT LAMPS
This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is
available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-16377.
All dimensions are in inches. For tolerances other than specified herein, see 3.5.2 of MIL-DTL-16377.
0.385 ±0.010
1
0.680 ±0.007 ID
16R
0.045 ±0.005
5
16
±1/32
1117
64
LABEL, TYPE IV EXCEPT AS MODIFIED
1
8 LETTERS, PRINTED IN BLACK WITH WHITE BACKGROUND
M16377/42
3
SEE TABLE I
8
1
24 MAX.
2 MIN.

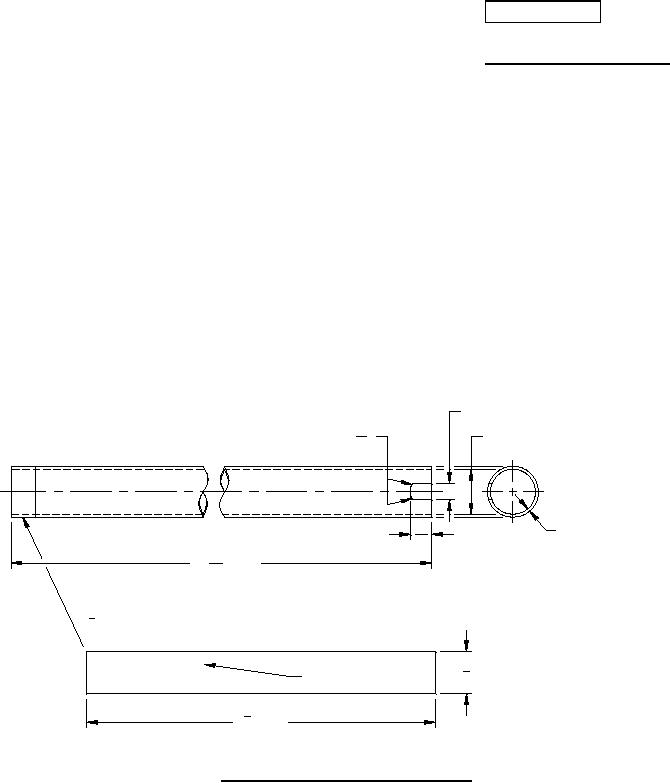

FIGURE 1. Filter tube for 8-watt T5 fluorescent lamp.
AMSC N/A
FSC 6210
