MIL-DTL-16377/57C(SH)

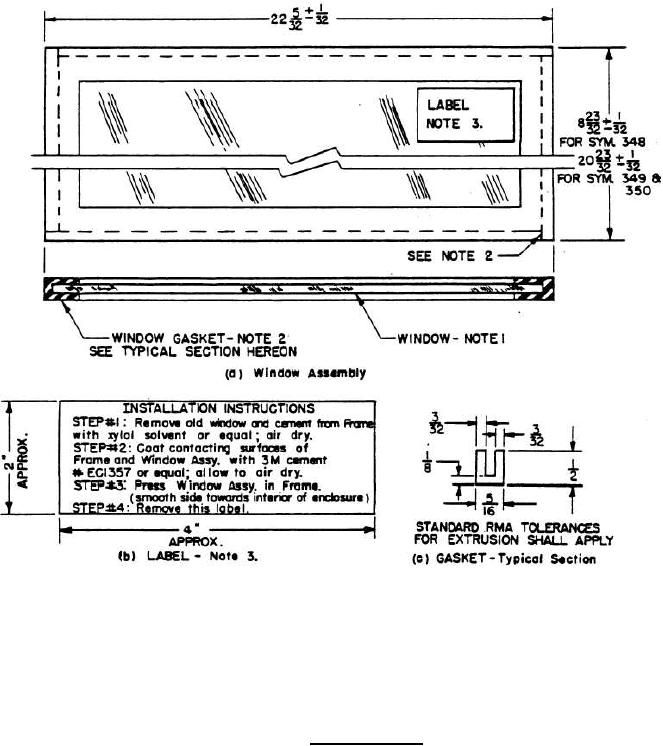

NOTES:
1.
Material for window shall be ½-inch thick, clear, prismatic (one side only), heat resistant, cast acrylic plastic
sheet, Type CLEAR-2, of MIL-DTL-24191.
2.
Material for window gasket shall be neoprene rubber 25-35 durometer. Gasket shall be cemented to window.
Gasket may be furnished in segments.
3.
For window assemblies furnished as repair parts, a Type IV label shall be furnished in accordance with
MIL-DTL-16377. Location and the information to be shown on this label shall be as shown hereon.
FIGURE 6. Window assembly.
5
