MIL-R-52002 Rack Assembly, Cone, Airport Marker LightThis specification covers a cone rack assembly for airport marker light cones.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


MIL-R-52002A (ME)



NOTE :

UNLESS  OTHERWISE  SPECIFIED  DIMENSIONS  ARE  IN  INCHES  AND

TOLERANCE IS ± 1/64

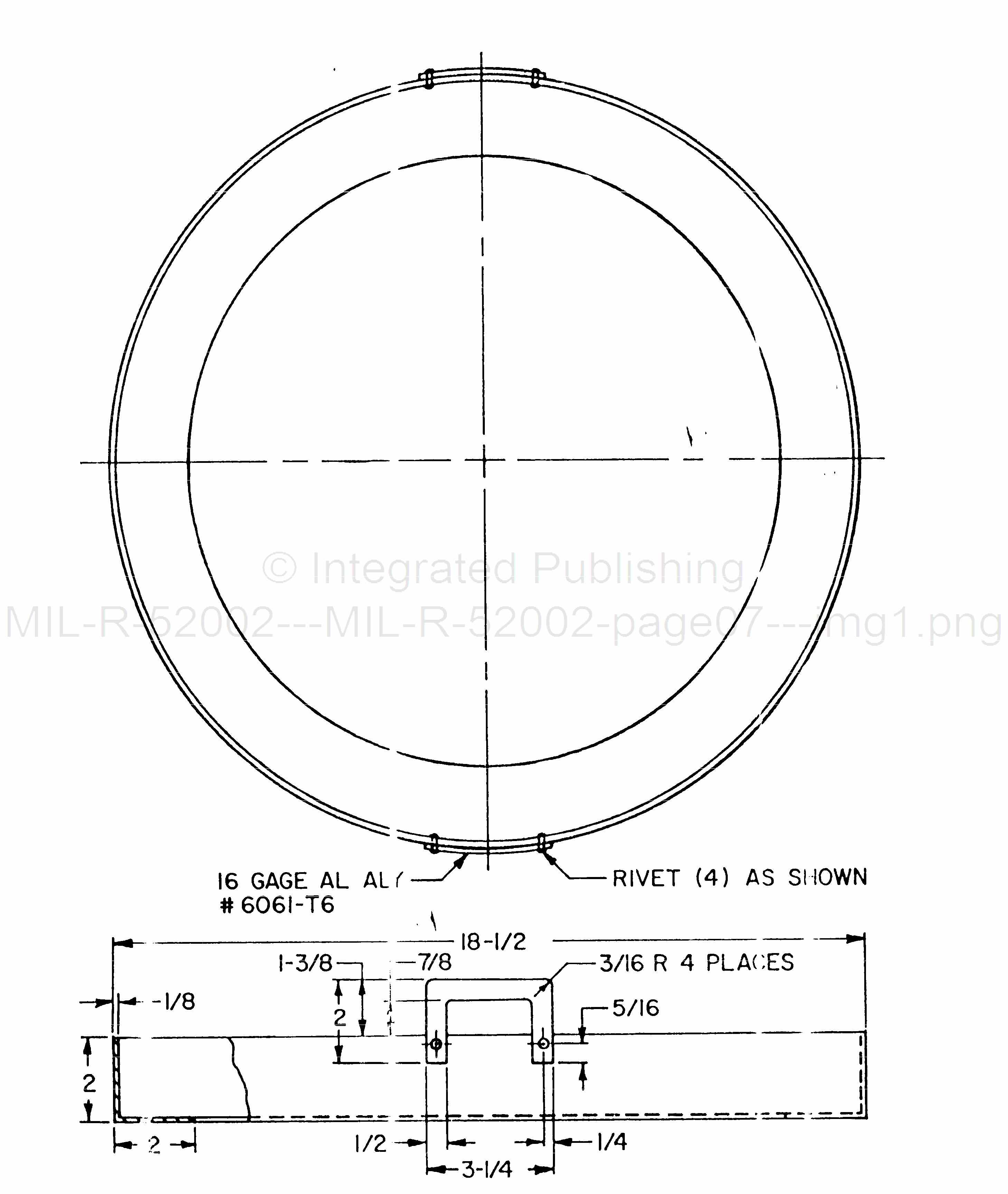

FIGURE 2. BASE ALUMINUM ALLOY     A3431-2A


7
