MIL-DTL-16377/12C(SH)
CLEAR AREA
FOR INSIDE & OUTSIDE PAINT
SEE NOTE 5
±1/16
22-1/2
BREAK SHARP EDGES 1/64 MIN.
0.171 DIAMETER - 6 HOLES
±0.031
AROUND ENTIRE WINDOW
11.312
SEE NOTE 3 - C'BORE 0.281 DIA. X
0.050 DEEP ON INSIDE SURFACE
±1/32
5-21/32
1-31/64
INSIDE
2-11/32
±1/16
9.234
4-11/16
7-11/16
9.141
±0.015
4.166
1/16R
1/4R
5/16R
1/2R
±0.015
±0.015
8.396
8.333
±0.035
±0.031
0.250
8 NOTCHES
25.125
SEE NOTE 2
FOR INSIDE & OUTSIDE PAINT
0.191 DIAMETER - 4 HOLES
28.937
SEE NOTE 4 - C'BORE 0.323 DIA. X 0.050
28.844
DEEP ON OUTSIDE SURFACE
±1/32
±1/32
±1/32
8-3/4
9-1/32
8-3/4
THIS SURFACE
±1/32
7/32
4-33/64
150
SHALL BE FLAT
ALL AROUND
WITHIN 1/16.
SEE NOTE 1
NOTES:
1.
Material shall be ¼ inch thick, clear transparent acrylic plastic, Type CLEAR-1 of MIL-DTL-24191.
2.
When required, notches shall be filed as shown in accordance with 3.7.4.4 of MIL-DTL-16377.
3.
Break sharp edges on the outside surface of all holes.
4.
Break sharp edges on the inside surface of all holes.
The inside surface of the window except the area indicated as "CLEAR AREA" shall be finished black. The
5.
outside surface of the window except the area indicated as "CLEAR AREA" shall be finished black.
Finishing shall be in accordance with 3.8.4.1 of MIL-DTL-16377.

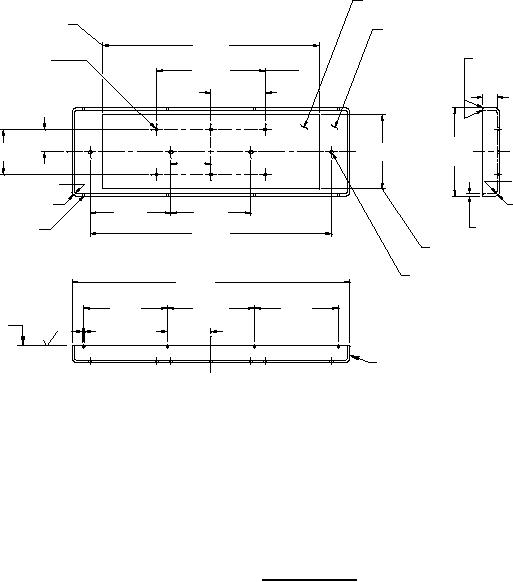

FIGURE 8. Window details.
5
