INCH-POUND
MIL-DTL-16377/26B(SH)
30 June 2014
SUPERSEDING
MIL-F-16377/26A(SH)
9 May 1983
DETAIL SPECIFICATION SHEET
FIXTURES, LIGHTING; INCANDESCENT AND SSL EQUIVALENT, GENERAL LIGHTING,
110 WATTS, 120 VOLTS, WATERTIGHT,
SYMBOLS 112, 113, 113.1, 112SSL, 113SSL, AND 113.1SSL
This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is
available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-16377.
All dimensions are in inches. For tolerances other than specified herein, see 3.5.2 of MIL-DTL-16377.

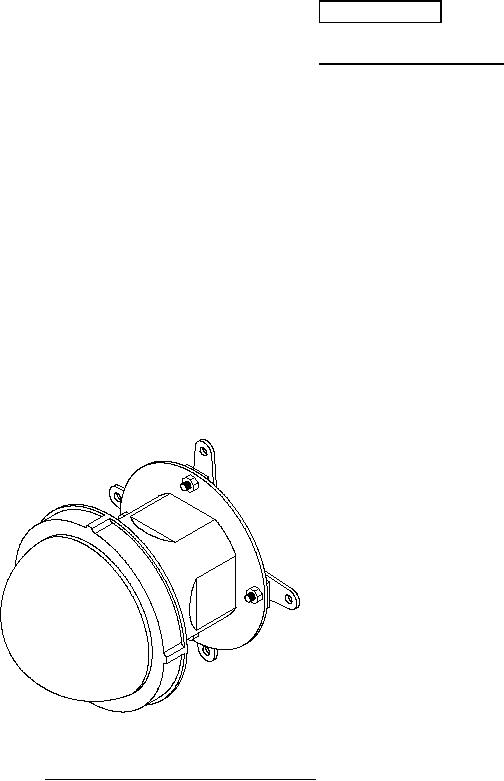

FIGURE 1. Fixtures, incandescent, symbols 112 and 113.
AMSC N/A
FSC 6210
