MIL-DTL-8954 Base And Accessories, Airport Marker Lights, General Specification ForThis specification covers the general requirements for bases, base plate assemblies, adapter plates, covers, frangible couplings, cable clamps, and gaskets used to install airport semiflush and elevated lights.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-8954C

MS21205 WASHER

(INSTALL LARGE METAL

MS24345

WASHER UP AS SHOWN)

BASE ASSEMBLY

MS26577 GASKET

MS24526 BASE

.3750-16 UNF-2A BOLT

50 IN/LB INSTALLATION TORQUE

BOLT MOUNTING

RETAINER

2 PIECE

10-24 UNC-2A

SCREW

RETAINER

1 PIECE

CONNECTOR

RETAINER MOUNTING

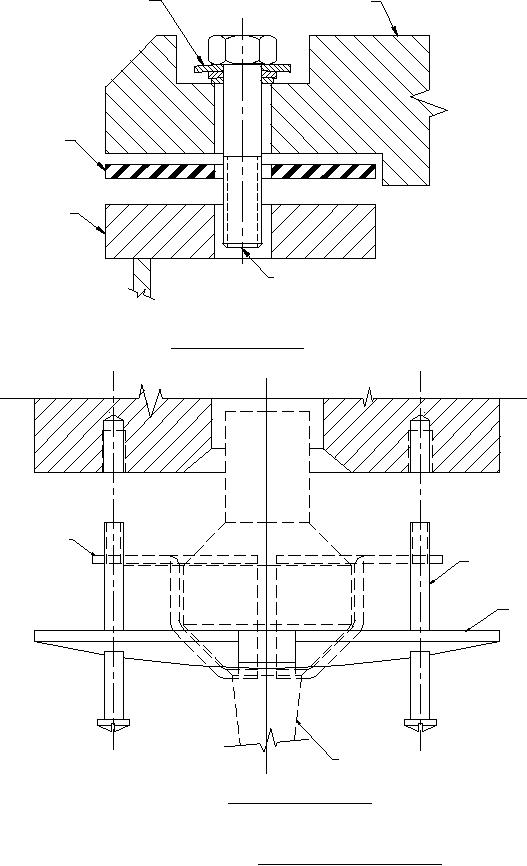

FIGURE 1. Mounting detail instructions
