INCH-POUND
MIL-DTL-16377/14B(SH)
30 June 2014
SUPERSEDING
MIL-F-16377/14A
18 March 1982
DETAIL SPECIFICATION SHEET
FIXTURES, LIGHTING;T5 FLUORESCENT AND SSL EQUIVALANT, GENERAL LIGHTING,
8 WATTS, 120 VOLTS, 60 HERTZ, WATERTIGHT,
SYMBOLS 79.1, 79.2, 80.1, 80.2, 79.1SSL, 79.2SSL, 80.1SSL, AND 80.2SSL
This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is
available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-16377.
All dimensions are in inches. For tolerances other than specified herein, see 3.5.2 of MIL-DTL-16377.

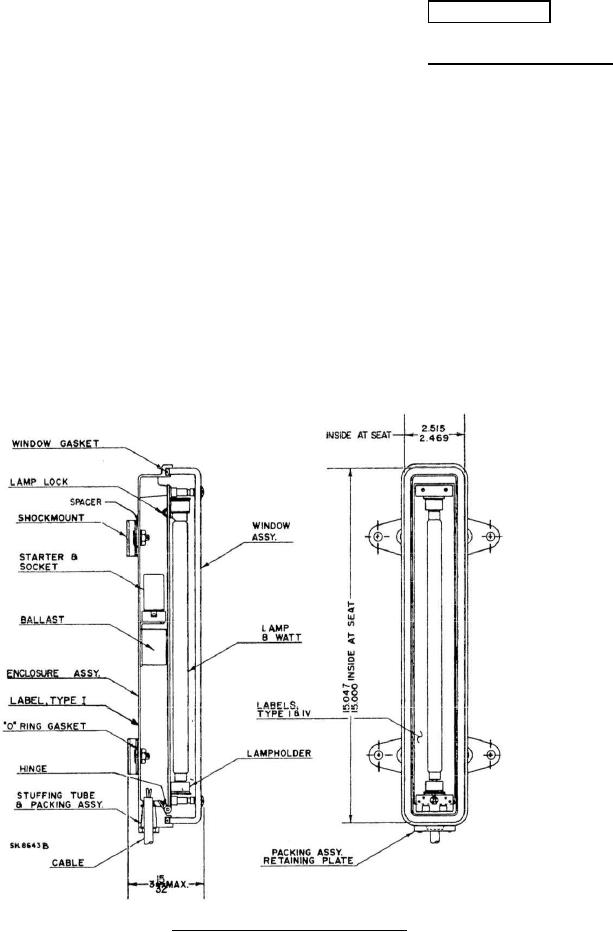

FIGURE 1. Typical view of symbols 79.1 and 80.1.
AMSC N/A
FSC 6210
