MIL-DTL-16377/14B(SH)
NOTES:
1.
Material shall be ¼ inch thick, clear acrylic plastic, Type CLEAR-1 of MIL-DTL-24191.
2.
Two long window securing screw assemblies shall be installed in accordance with 3.7.6.3 of
MIL-DTL-16377 except that the louver frame shall be inserted between leather washer and captive bushing.
3.
Notches shall be filed as shown in accordance with 3.7.6.4 of MIL-DTL-16377.
4.
Drill 0.191 diameter hole and counterbore opposite side 0.323 diameter, 0.050 deep. Break sharp edges on
the inside surface on all holes.
Break sharp edges 1/64 inch around entire window.
5.
6.
When required, one Type VI label shall be applied on the outside surface in accordance with 3.9.1.8.6 of
MIL-DTL-16377.

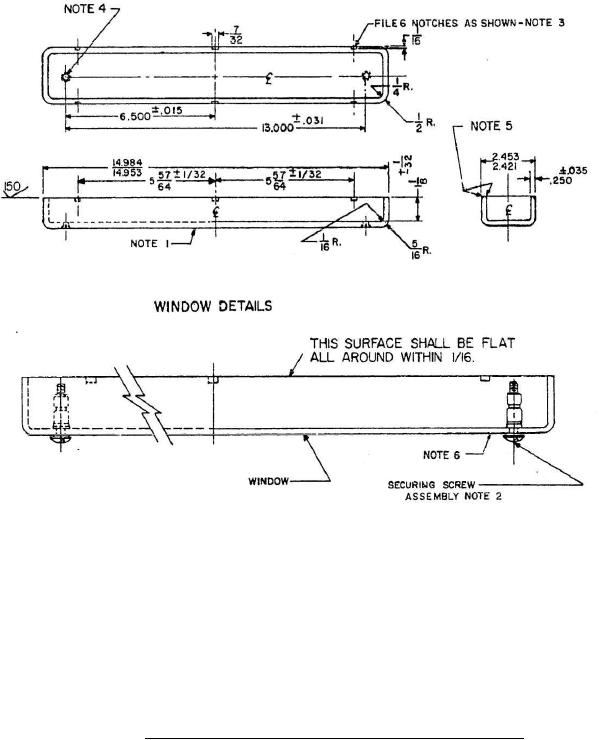

FIGURE 7. Window assembly, white, diffusing, for symbols 80.1 and 80.2.
