MIL-DTL-5904 Light, Runway Marker, Elevated, Type C-1This specification covers class I, II, and III of high-intensity elevated runway marker lights designated type C-1.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


MIL-DTL-5904E

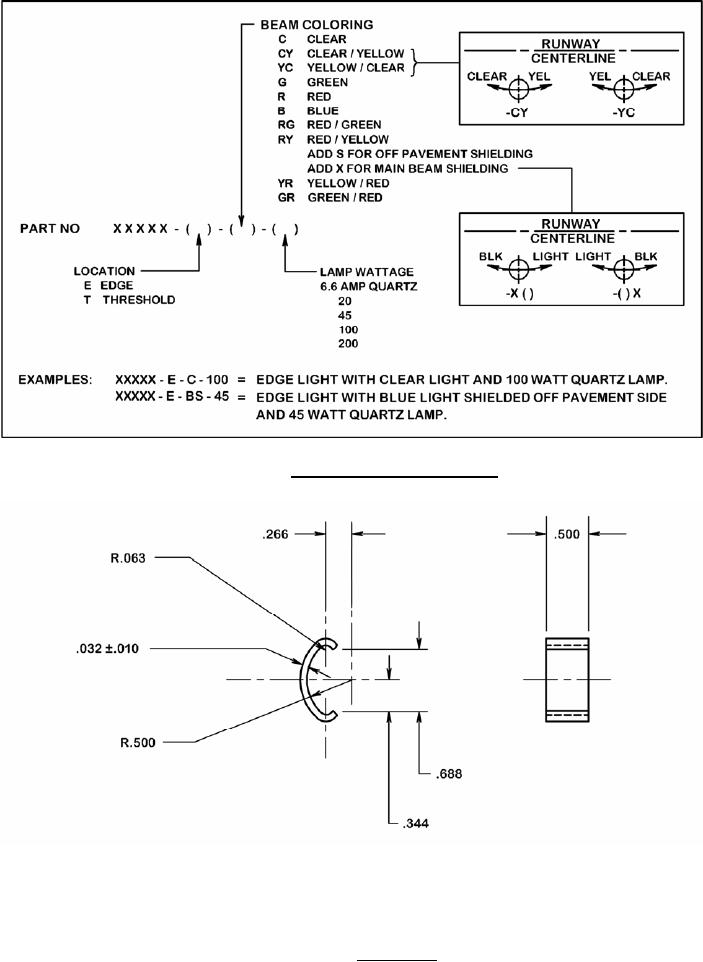

FIGURE 4. Color dome ordering system.
NOTES:
1. All dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.031.
3. Material is stainless steel AISI type 414.
FIGURE 5. Spring clip
18
