MIL-DTL-16377J(SH)

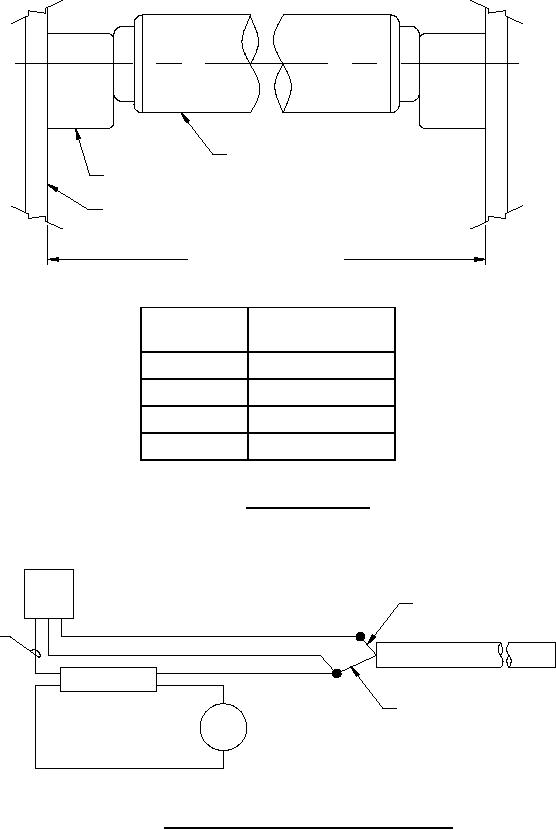

FLUORESCENT LAMP
LAMPHOLDER
LAMPHOLDER MOUNTING BRACKET
LAMPHOLDER SPACING
SEE DIMENSION "A"
Dimension "A"
Lamp
(Inches) ±0.015″
(Watts)
6
9.360
8
12.360
15
18.150
20
24.150
FIGURE 21. Lampholder spacing.
BALLAST
WHITE LEAD
BLUE
WIRE
CABLE
LAMP
BLACK LEAD
STARTER
FIGURE 22. Wiring diagram to operate one fluorescent lamp.
49
