MIL-DTL-16377 Fixtures, Lighting; And Associated Parts; Shipboard Use, General Specification ForThis specification covers fluorescent, incandescent lighting and solid state lighting \(SSL\) \(see 6.12.4\) luminaires and associated parts for legacy replacement and new luminaire development fixtures \(lights\) and associated parts, used for detail and general illumination on naval ships and submarines.

Pages 1 - - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56 - 57 - 58 - 59 - 60 - 61 - 62|||


MIL-DTL-16377J(SH)
FOR SINGLE WHITE OR RED CIRCUIT: CONNECT WHITE
LEAD TO WHITE LINE TERMINAL. CONNECT RED AND BLACK
LEADS TO OTHER LINE TERMINAL.
FOR COMBINATION RED AND WHITE CIRCUITS:
CONNECT WHITE LEAD TO WHITE LINE TERMINAL.
CONNECT BLACK LEAD TO BLACK LINE TERMINAL.
CONNECT RED LEAD TO RED LINE TERMINAL.

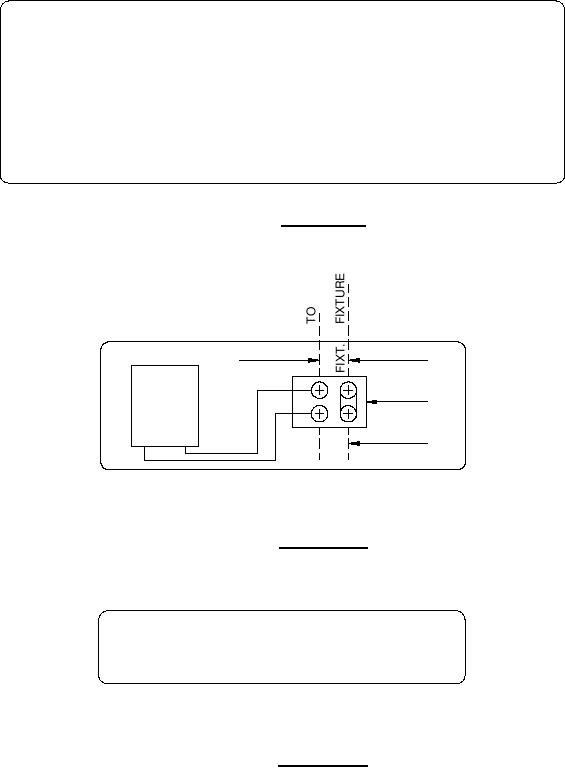

FIGURE 12. Type II labels.
WHITE
BLACK
WIRE
WIRE
TERMINAL
BALLAST
BLOCK
LINE
115VAC
TYPICAL WIRING DIAGRAM LABEL
FIGURE 13. Type III labels.
INSTALL THE FOLLOWING LAMP ONLY
NSN 6240-00-246-5054
TYPICAL INFORMATION LABEL
FIGURE 14. Type IV labels.
