MIL-DTL-16377J(SH)
CALIBRATED STEEL UPRIGHT -
SUFFICIENTLY ADJUSTED VERTICALLY
TO SUIT ALL SIZES OF GLOBE
AND LENSES.
WALL
MAGNET SUPPORTING BRACKET - WOOD
ADJUSTABLE VERTICALLY
ELECTROMAGNET SUFFICIENTLY
POWERFUL TO SUPPORT A
5 LB STEEL BALL.
WING NUT
HARDENED STEEL BALL
(POLISHED)
GLASS TO BE TESTED
13"
2' 0"
SOFT
SMOOTH LEVEL
2"
12"
WOOD
SURFACE
WOOD
SPACER
6"
12"
2' 0"
FLOOR LINE
HOLE FOR PLUMB LINE.
MOMENTARY CONTACT SWITCH,
ELECTROMAGNET
NORMALLY CLOSED.
115 VOLT SUPPLY
WIRING DIAGRAM
CUP POINT TO CAUSE BALL
TO COME TO REST QUICKLY
IN CENTERED POSITION.
TYPICAL ELECTROMAGNET

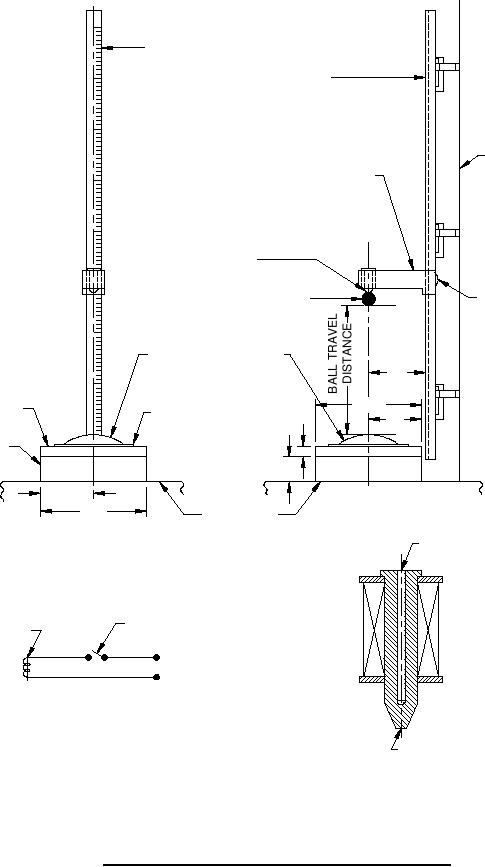

FIGURE 18. Typical ball impact equipment for shock test of glassware.
