MIL-DTL-16377 Fixtures, Lighting; And Associated Parts; Shipboard Use, General Specification ForThis specification covers fluorescent, incandescent lighting and solid state lighting \(SSL\) \(see 6.12.4\) luminaires and associated parts for legacy replacement and new luminaire development fixtures \(lights\) and associated parts, used for detail and general illumination on naval ships and submarines.

Pages 1 - - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54|||

MIL-DTL-16377J(SH)

ADDITIONAL HARDWARE FOR

CENTER SCREWS WHEN WINDOW

IS FURNISHED AS A REPLACEMENT

SCREW, LONG

PART.

(SEE FIGURE 3)

SEE 3.7.4.3

CAPTIVE BUSHING LONG

(SEE FIGURE 3)

10-24UNC-2B NUT

WASHER LEATHER, FIRM,

11

5

1

32 OD BY 32 ID BY 16 THICK

#10 LOCKWASHER

COMMERCIAL O-RING

#10 FLAT WASHER

GASKET, SIZE AN6227-3

WINDOW

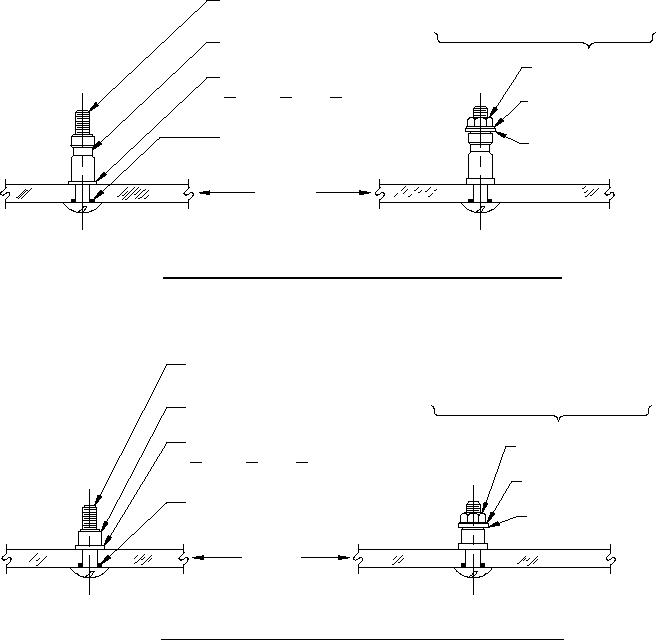

FIGURE 1. Securing screw assembly (long) for watertight window assemblies.

ADDITIONAL HARDWARE FOR

CENTER SCREWS WHEN WINDOW

SCREW, SHORT

IS FURNISHED AS A REPLACEMENT

(SEE FIGURE 3)

PART.

SEE 3.7.4.3

CAPTIVE BUSHING SHORT

(SEE FIGURE 3)

WASHER LEATHER, FIRM,

10-24UNC-2B NUT

11

5

1

32 OD BY 32 ID BY 16 THICK

#10 LOCKWASHER

COMMERCIAL O-RING

#10 FLAT WASHER

GASKET, SIZE AN6227-3

WINDOW

FIGURE 2. Securing screw assembly (short) for watertight window assemblies.

35
