MIL-DTL-16377 Fixtures, Lighting; And Associated Parts; Shipboard Use, General Specification ForThis specification covers fluorescent, incandescent lighting and solid state lighting \(SSL\) \(see 6.12.4\) luminaires and associated parts for legacy replacement and new luminaire development fixtures \(lights\) and associated parts, used for detail and general illumination on naval ships and submarines.

Pages 1 - - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49 - 50 - 51 - 52 - 53 - 54 - 55 - 56|||


MIL-DTL-16377J(SH)
0.171 DIA. HOLE COUNTER BORE
LOUVER AND MOUNTING BRACKET
OPPOSITE SIDE 0.281 DIA. X 0.050
DEEP
COMMERCIAL O-RING
WINDOW
GASKET, SIZE AN6227-2
6-32 TRUSS HEAD MACHINE SCREW -
PHILLIPS RECESS, BRASS, NICKEL
PLATED, OR CRES

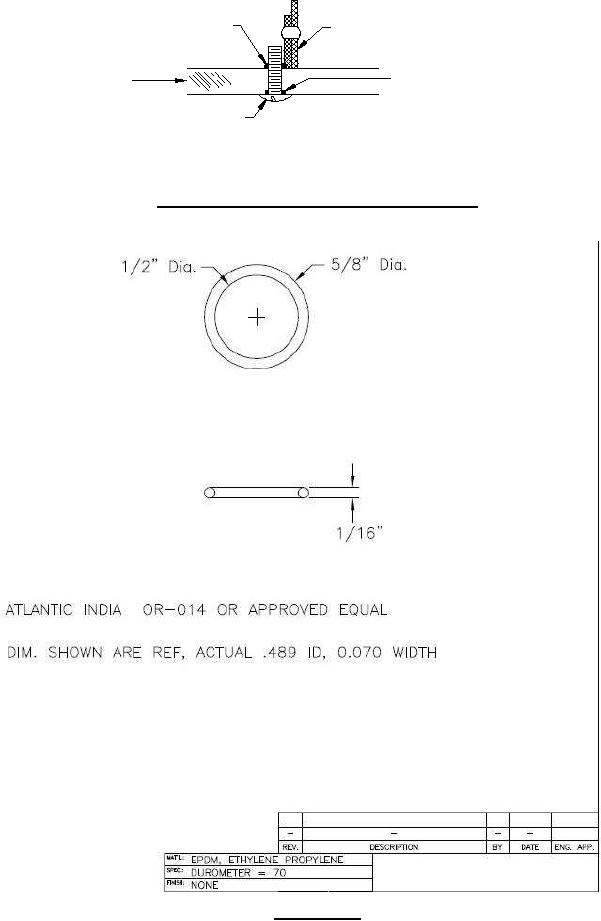

FIGURE 4. Louver attachment for watertight window assemblies.
FIGURE 5. Starter washer.
